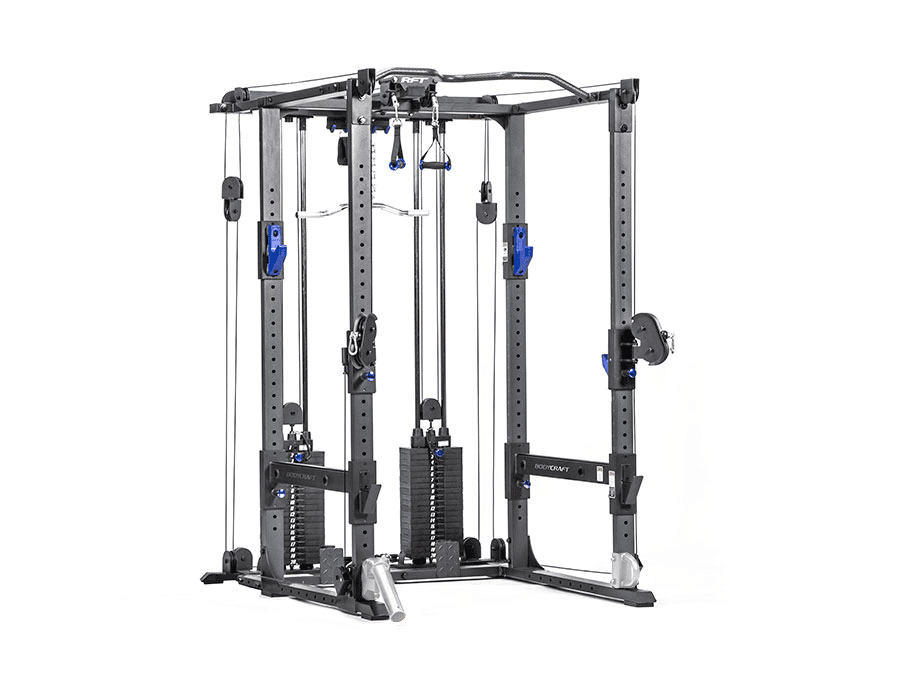

Bodycraft RFT Pro Rack Functional Trainer

On Display in Showroom

Description

• Customizable: Add dip handles, landmine, and bench for full training setup.

• Dual 150 LB Weight Stacks: Independent, upgradeable resistance.

• Pop-Pin Adjustments: Quick and secure barCatches and spotters.

• Power Rack Features: Multi-gripChin bar, bar storage, laser-etched uprights.

• 6 Swivel Pulleys: Multi-plane movement for versatile exercises.

Specifications

PERFORMANCE



Bar Catches:  Steel Reinforced Polyurethane Covered Bar Catches (Prevents Scratching)

Cable Columns/Uprights: 25 Precision Lasered Height Position Dual Independent 180 Degree Rotational Adjustable Swivel Pulleys

Weight Stacks: Dual 150 LBS Weight Stacks with Magnetic Selector Pins W/ Lanyard. 2:1 Ratio. Optional Upgrade to 200 LBS. Each.

Accessories Dual Contoured Single Handles, Lat Bar, Padded Ankle Cuff, Dual Heavy-Duty 21 Link Adjustment Chain Set

Chin Bar: (Wide – Classic – Narrow) Uses Include, Pull-Ups, Hanging Ab Straps, Bands, Inversion Boots

Working Space: 34.5″ Depth by 43″ Wide Between Uprights

DIMS/WEIGHT



Click HERE to see dimensions PDF

Dimensions: 63.1″L x 59.4″W x 83.5″H (Base)

w/F735 Plates Racks: 71.7″L x 106.4″W x 83.5″H

Weight: 665 LBS (150 LB stacks) | 715 LBS (200 LB stacks)

BUILD



Aesthetics: Black Oxide Hardware, Blue Anodized Aluminum Selector Pins and Pop-Pins and Blue Single Handle Accents

Frame: Heavy-Gauge 2″ x 3″ Rectangle Tubing w/Laser Cut Steel Plates

Finish: Diamond Gray and Black Electrostatic Powder-Coated Finish

Pulleys: 3.5″ and 4.5″ Fiberglass Impregnated Nylon Pulleys with Sealed Maintenance-Free Precision Ball Bearings

Cables: Nylon Coated, 7 X 19 Strand Aircraft Cable Rated at Over 2000 LBS. Tensile Strength

Weight Capacity: Rated for up to 1,000 LBS

Stability: Non-skid Rubber Contact Points help secure and level the machine
